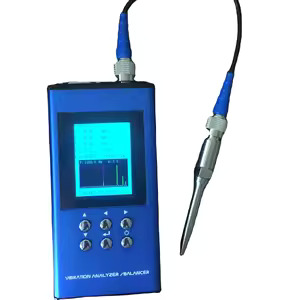

S911HD Balancer / Vibration Analyzer / Data Collector – MTG

S911HD Balancer/Vibration Analyzer/Data Collector – MTG
Quickly locate heavy spots of imbalance without stopping the machine!
The S911HD is a compact and affordable vibration spectrum analyzer and data collector. It is suitable for overall vibration measurement, spectrum analysis, and high frequency acceleration envelope measurement for effective bearing fault detection. Data can be transmitted to a computer for database and trend analysis.
Additionally, it is a cost-effective and user-friendly balancing meter that measures rotation speed RPM, amplitude, phase, and optional temperature measurement.

Accuracy of vibration measurement:
✧ Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1 μ m
✧ Frequency response accuracy: ± 5% + 2 digits
✧ Non-linearity: ± 5% + 2 digits

● Rechargeable Li-ion battery, Automatic power off, >20 hours operation time
● Operation temperature range: 0 – 50 ° C

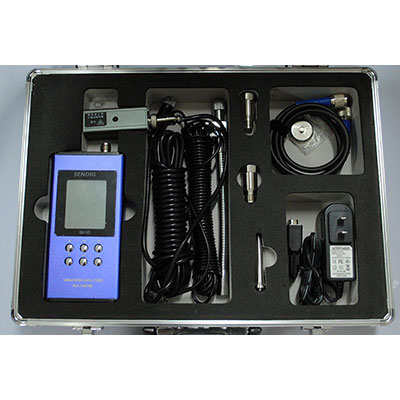

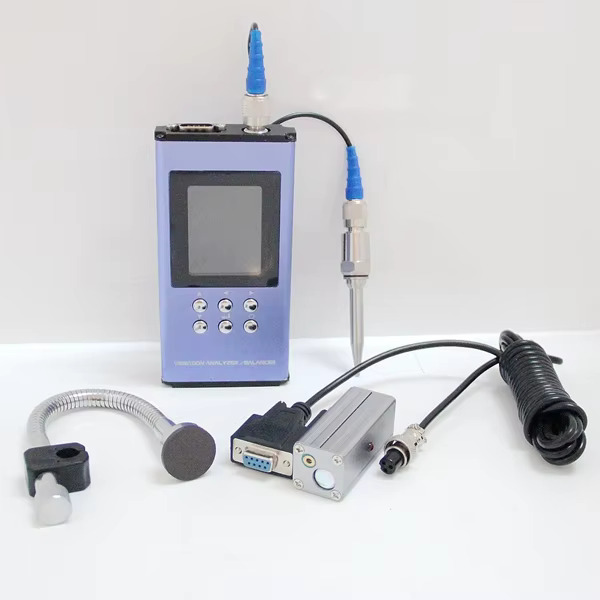

● Pickup: Accelerometer with extension stinger and magnetic mount, Optional tacho-sensor
● Rotation speed measurement range: 10-60000 RPM
● Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum
● Size: 150 x 70 x 25 (mm)
